FD铝合金加工用直槽钻头

5FD-SA

FD 整体硬质合金铝用直槽钻头5×D 基准型

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为M7，柄部公差为H6。

3、刀尖顶角、刀尖形式、排屑槽均针对各系列的加工特点分别设计，确保达到最优的加工效果。

  • 产品特色
  • 产品尺寸
  • 加工视频

FD系列整硬直槽钻头

铝用无涂层/铸铁用有涂层



被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎



(◎ 最适合  ○ 适合)




可选类型：

3XD  /  3XD 内冷  /  5XD  /  5XD 内冷



尺寸范围：

D=2.00~20.00mm





基准型订货号 刃径 槽长 柄径 柄长 总长

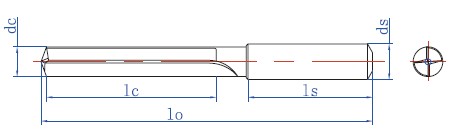

SA系列（铝用无涂层） dc  lc  ds  ls  lo
5FD0300SA 3.00 24 4 28 57
5FD0310SA 3.10 24 4 28 57
5FD0320SA 3.20 24 4 28 57
5FD0330SA 3.30 24 4 28 57
5FD0340SA 3.40 24 4 28 57
5FD0350SA 3.50 24 4 28 57
5FD0360SA 3.60 24 4 28 57
5FD0370SA 3.70 24 4 28 57
5FD0380SA 3.80 24 4 28 57
5FD0390SA 3.90 24 4 28 57
5FD0400SA 4.00 24 4 28 57
5FD0410SA 4.10 30 6 36 71
5FD0420SA 4.20 30 6 36 71
5FD0430SA 4.30 30 6 36 71
5FD0440SA 4.40 30 6 36 71
5FD0450SA 4.50 30 6 36 71
5FD0460SA 4.60 30 6 36 71
5FD0470SA 4.70 30 6 36 71
5FD0480SA 4.80 30 6 36 71
5FD0490SA 4.90 30 6 36 71
5FD0500SA 5.00 30 6 36 71
5FD0510SA 5.10 36 6 36 77
5FD0520SA 5.20 36 6 36 77
5FD0530SA 5.30 36 6 36 77
5FD0540SA 5.40 36 6 36 77
5FD0550SA 5.50 36 6 36 77
5FD0560SA 5.60 36 6 36 77
5FD0570SA 5.70 36 6 36 77
5FD0580SA 5.80 36 6 36 77
5FD0590SA 5.90 36 6 36 77
5FD0600SA 6.00 36 6 36 77
5FD0610SA 6.10 42 8 36 83
5FD0620SA 6.20 42 8 36 83
5FD0630SA 6.30 42 8 36 83
5FD0640SA 6.40 42 8 36 83
5FD0650SA 6.50 42 8 36 83
5FD0660SA 6.60 42 8 36 83
5FD0670SA 6.70 42 8 36 83
5FD0680SA 6.80 42 8 36 83
5FD0690SA 6.90 42 8 36 83
5FD0700SA 7.00 42 8 36 83
5FD0710SA 7.10 48 8 36 89
5FD0720SA 7.20 48 8 36 89
5FD0730SA 7.30 48 8 36 89
5FD0740SA 7.40 48 8 36 89
5FD0750SA 7.50 48 8 36 89
5FD0760SA 7.60 48 8 36 89
5FD0770SA 7.70 48 8 36 89
5FD0780SA 7.80 48 8 36 89
5FD0790SA 7.90 48 8 36 89
5FD0800SA 8.00 48 8 36 89
5FD0810SA 8.10 54 10 40 99
5FD0820SA 8.20 54 10 40 99
5FD0830SA 8.30 54 10 40 99
5FD0840SA 8.40 54 10 40 99
5FD0850SA 8.50 54 10 40 99
5FD0860SA 8.60 54 10 40 99
5FD0870SA 8.70 54 10 40 99
5FD0880SA 8.80 54 10 40 99
5FD0890SA 8.90 54 10 40 99
5FD0900SA 9.00 54 10 40 99
5FD0910SA 9.10 60 10 40 105
5FD0920SA 9.20 60 10 40 105
5FD0930SA 9.30 60 10 40 105
5FD0940SA 9.40 60 10 40 105
5FD0950SA 9.50 60 10 40 105
5FD0960SA 9.60 60 10 40 105
5FD0970SA 9.70 60 10 40 105
5FD0980SA 9.80 60 10 40 105
5FD0990SA 9.90 60 10 40 105
5FD1000SA 10.00 60 10 40 105
5FD1010SA 10.10 66 12 45 116
5FD1020SA 10.20 66 12 45 116
5FD1030SA 10.30 66 12 45 116
5FD1040SA 10.40 66 12 45 116
5FD1050SA 10.50 66 12 45 116
5FD1060SA 10.60 66 12 45 116
5FD1070SA 10.70 66 12 45 116
5FD1080SA 10.80 66 12 45 116
5FD1090SA 10.90 66 12 45 116
5FD1100SA 11.00 66 12 45 116
5FD1110SA 11.10 72 12 45 122
5FD1120SA 11.20 72 12 45 122
5FD1130SA 11.30 72 12 45 122
5FD1140SA 11.40 72 12 45 122
5FD1150SA 11.50 72 12 45 122
5FD1160SA 11.60 72 12 45 122
5FD1170SA 11.70 72 12 45 122
5FD1180SA 11.80 72 12 45 122
5FD1190SA 11.90 72 12 45 122
5FD1200SA 12.00 72 12 45 122
5FD1210SA 12.10 78 14 45 128
5FD1220SA 12.20 78 14 45 128
5FD1230SA 12.30 78 14 45 128
5FD1240SA 12.40 78 14 45 128
5FD1250SA 12.50 78 14 45 128
5FD1260SA 12.60 78 14 45 128
5FD1270SA 12.70 78 14 45 128
5FD1280SA 12.80 78 14 45 128
5FD1290SA 12.90 78 14 45 128
5FD1300SA 13.00 78 14 45 128
5FD1310SA 13.10 84 14 45 134
5FD1320SA 13.20 84 14 45 134
5FD1330SA 13.30 84 14 45 134
5FD1340SA 13.40 84 14 45 134
5FD1350SA 13.50 84 14 45 134
5FD1360SA 13.60 84 14 45 134
5FD1370SA 13.70 84 14 45 134
5FD1380SA 13.80 84 14 45 134
5FD1390SA 13.90 84 14 45 134
5FD1400SA 14.00 84 14 45 134
5FD1410SA 14.10 90 16 48 143
5FD1420SA 14.20 90 16 48 143
5FD1430SA 14.30 90 16 48 143
5FD1440SA 14.40 90 16 48 143
5FD1450SA 14.50 90 16 48 143
5FD1460SA 14.60 90 16 48 143
5FD1470SA 14.70 90 16 48 143
5FD1480SA 14.80 90 16 48 143
5FD1490SA 14.90 90 16 48 143
5FD1500SA 15.00 90 16 48 143
5FD1510SA 15.10 96 16 48 149
5FD1520SA 15.20 96 16 48 149
5FD1530SA 15.30 96 16 48 149
5FD1540SA 15.40 96 16 48 149
5FD1550SA 15.50 96 16 48 149
5FD1560SA 15.60 96 16 48 149
5FD1570SA 15.70 96 16 48 149
5FD1580SA 15.80 96 16 48 149
5FD1590SA 15.90 96 16 48 149
5FD1600SA 16.00 96 16 48 149
5FD1610SA 16.10 102 18 48 155
5FD1620SA 16.20 102 18 48 155
5FD1630SA 16.30 102 18 48 155
5FD1640SA 16.40 102 18 48 155
5FD1650SA 16.50 102 18 48 155
5FD1660SA 16.60 102 18 48 155
5FD1670SA 16.70 102 18 48 155
5FD1680SA 16.80 102 18 48 155
5FD1690SA 16.90 102 18 48 155
5FD1700SA 17.00 102 18 48 155
5FD1710SA 17.10 108 18 48 161
5FD1720SA 17.20 108 18 48 161
5FD1730SA 17.30 108 18 48 161
5FD1740SA 17.40 108 18 48 161
5FD1750SA 17.50 108 18 48 161
5FD1760SA 17.60 108 18 48 161
5FD1770SA 17.70 108 18 48 161
5FD1780SA 17.80 108 18 48 161
5FD1790SA 17.90 108 18 48 161
5FD1800SA 18.00 108 18 48 161
5FD1810SA 18.10 114 20 50 169
5FD1820SA 18.20 114 20 50 169
5FD1830SA 18.30 114 20 50 169
5FD1840SA 18.40 114 20 50 169
5FD1850SA 18.50 114 20 50 169
5FD1860SA 18.60 114 20 50 169
5FD1870SA 18.70 114 20 50 169
5FD1880SA 18.80 114 20 50 169
5FD1890SA 18.90 114 20 50 169
5FD1900SA 19.00 114 20 50 169
5FD1910SA 19.10 120 20 50 175
5FD1920SA 19.20 120 20 50 175
5FD1930SA 19.30 120 20 50 175
5FD1940SA 19.40 120 20 50 175
5FD1950SA 19.50 120 20 50 175
5FD1960SA 19.60 120 20 50 175
5FD1970SA 19.70 120 20 50 175
5FD1980SA 19.80 120 20 50 175
5FD1990SA 19.90 120 20 50 175
5FD2000SA 20.00 120 20 50 175
