FD铝合金加工用直槽钻头

O3FD-SA

FD 内冷整体硬质合金铝用直槽钻头3×D 基准型

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为M7，柄部公差为H6。

3、刀尖顶角、刀尖形式、排屑槽均针对各系列的加工特点分别设计，确保达到最优的加工效果。

  • 产品特色
  • 产品尺寸
  • 加工视频

FD系列整硬直槽钻头

铝用无涂层/铸铁用有涂层



被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎



(◎ 最适合  ○ 适合)




可选类型：

3XD  /  3XD 内冷  /  5XD  /  5XD 内冷



尺寸范围：

D=2.00~20.00mm

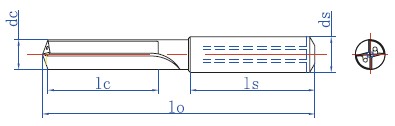

基准型订货号 刃径 槽长 柄径 柄长 总长
SA系列（铝用无涂层） dc  lc  ds  ls  lo
O3FD0300SA 3.00 16 4 28 49
O3FD0310SA 3.10 16 4 28 49
O3FD0320SA 3.20 16 4 28 49
O3FD0330SA 3.30 16 4 28 49
O3FD0340SA 3.40 16 4 28 49
O3FD0350SA 3.50 16 4 28 49
O3FD0360SA 3.60 16 4 28 49
O3FD0370SA 3.70 16 4 28 49
O3FD0380SA 3.80 16 4 28 49
O3FD0390SA 3.90 16 4 28 49
O3FD0400SA 4.00 16 4 28 49
O3FD0410SA 4.10 20 6 36 61
O3FD0420SA 4.20 20 6 36 61
O3FD0430SA 4.30 20 6 36 61
O3FD0440SA 4.40 20 6 36 61
O3FD0450SA 4.50 20 6 36 61
O3FD0460SA 4.60 20 6 36 61
O3FD0470SA 4.70 20 6 36 61
O3FD0480SA 4.80 20 6 36 61
O3FD0490SA 4.90 20 6 36 61
O3FD0500SA 5.00 20 6 36 61
O3FD0510SA 5.10 24 6 36 65
O3FD0520SA 5.20 24 6 36 65
O3FD0530SA 5.30 24 6 36 65
O3FD0540SA 5.40 24 6 36 65
O3FD0550SA 5.50 24 6 36 65
O3FD0560SA 5.60 24 6 36 65
O3FD0570SA 5.70 24 6 36 65
O3FD0580SA 5.80 24 6 36 65
O3FD0590SA 5.90 24 6 36 65
O3FD0600SA 6.00 24 6 36 65
O3FD0610SA 6.10 28 8 36 69
O3FD0620SA 6.20 28 8 36 69
O3FD0630SA 6.30 28 8 36 69
O3FD0640SA 6.40 28 8 36 69
O3FD0650SA 6.50 28 8 36 69
O3FD0660SA 6.60 28 8 36 69
O3FD0670SA 6.70 28 8 36 69
O3FD0680SA 6.80 28 8 36 69
O3FD0690SA 6.90 28 8 36 69
O3FD0700SA 7.00 28 8 36 69
O3FD0710SA 7.10 32 8 36 73
O3FD0720SA 7.20 32 8 36 73
O3FD0730SA 7.30 32 8 36 73
O3FD0740SA 7.40 32 8 36 73
O3FD0750SA 7.50 32 8 36 73
O3FD0760SA 7.60 32 8 36 73
O3FD0770SA 7.70 32 8 36 73
O3FD0780SA 7.80 32 8 36 73
O3FD0790SA 7.90 32 8 36 73
O3FD0800SA 8.00 32 8 36 73
O3FD0810SA 8.10 36 10 40 81
O3FD0820SA 8.20 36 10 40 81
O3FD0830SA 8.30 36 10 40 81
O3FD0840SA 8.40 36 10 40 81
O3FD0850SA 8.50 36 10 40 81
O3FD0860SA 8.60 36 10 40 81
O3FD0870SA 8.70 36 10 40 81
O3FD0880SA 8.80 36 10 40 81
O3FD0890SA 8.90 36 10 40 81
O3FD0900SA 9.00 36 10 40 81
O3FD0910SA 9.10 40 10 40 85
O3FD0920SA 9.20 40 10 40 85
O3FD0930SA 9.30 40 10 40 85
O3FD0940SA 9.40 40 10 40 85
O3FD0950SA 9.50 40 10 40 85
O3FD0960SA 9.60 40 10 40 85
O3FD0970SA 9.70 40 10 40 85
O3FD0980SA 9.80 40 10 40 85
O3FD0990SA 9.90 40 10 40 85
O3FD1000SA 10.00 40 10 40 85
O3FD1010SA 10.10 44 12 45 94
O3FD1020SA 10.20 44 12 45 94
O3FD1030SA 10.30 44 12 45 94
O3FD1040SA 10.40 44 12 45 94
O3FD1050SA 10.50 44 12 45 94
O3FD1060SA 10.60 44 12 45 94
O3FD1070SA 10.70 44 12 45 94
O3FD1080SA 10.80 44 12 45 94
O3FD1090SA 10.90 44 12 45 94
O3FD1100SA 11.00 44 12 45 94
O3FD1110SA 11.10 48 12 45 98
O3FD1120SA 11.20 48 12 45 98
O3FD1130SA 11.30 48 12 45 98
O3FD1140SA 11.40 48 12 45 98
O3FD1150SA 11.50 48 12 45 98
O3FD1160SA 11.60 48 12 45 98
O3FD1170SA 11.70 48 12 45 98
O3FD1180SA 11.80 48 12 45 98
O3FD1190SA 11.90 48 12 45 98
O3FD1200SA 12.00 48 12 45 98
O3FD1210SA 12.10 52 14 45 102
O3FD1220SA 12.20 52 14 45 102
O3FD1230SA 12.30 52 14 45 102
O3FD1240SA 12.40 52 14 45 102
O3FD1250SA 12.50 52 14 45 102
O3FD1260SA 12.60 52 14 45 102
O3FD1270SA 12.70 52 14 45 102
O3FD1280SA 12.80 52 14 45 102
O3FD1290SA 12.90 52 14 45 102
O3FD1300SA 13.00 52 14 45 102
O3FD1310SA 13.10 56 14 45 106
O3FD1320SA 13.20 56 14 45 106
O3FD1330SA 13.30 56 14 45 106
O3FD1340SA 13.40 56 14 45 106
O3FD1350SA 13.50 56 14 45 106
O3FD1360SA 13.60 56 14 45 106
O3FD1370SA 13.70 56 14 45 106
O3FD1380SA 13.80 56 14 45 106
O3FD1390SA 13.90 56 14 45 106
O3FD1400SA 14.00 56 14 45 106
O3FD1410SA 14.10 60 16 48 113
O3FD1420SA 14.20 60 16 48 113
O3FD1430SA 14.30 60 16 48 113
O3FD1440SA 14.40 60 16 48 113
O3FD1450SA 14.50 60 16 48 113
O3FD1460SA 14.60 60 16 48 113
O3FD1470SA 14.70 60 16 48 113
O3FD1480SA 14.80 60 16 48 113
O3FD1490SA 14.90 60 16 48 113
O3FD1500SA 15.00 60 16 48 113
O3FD1510SA 15.10 64 16 48 117
O3FD1520SA 15.20 64 16 48 117
O3FD1530SA 15.30 64 16 48 117
O3FD1540SA 15.40 64 16 48 117
O3FD1550SA 15.50 64 16 48 117
O3FD1560SA 15.60 64 16 48 117
O3FD1570SA 15.70 64 16 48 117
O3FD1580SA 15.80 64 16 48 117
O3FD1590SA 15.90 64 16 48 117
O3FD1600SA 16.00 64 16 48 117
O3FD1610SA 16.10 68 18 48 121
O3FD1620SA 16.20 68 18 48 121
O3FD1630SA 16.30 68 18 48 121
O3FD1640SA 16.40 68 18 48 121
O3FD1650SA 16.50 68 18 48 121
O3FD1660SA 16.60 68 18 48 121
O3FD1670SA 16.70 68 18 48 121
O3FD1680SA 16.80 68 18 48 121
O3FD1690SA 16.90 68 18 48 121
O3FD1700SA 17.00 68 18 48 121
O3FD1710SA 17.10 72 18 48 125
O3FD1720SA 17.20 72 18 48 125
O3FD1730SA 17.30 72 18 48 125
O3FD1740SA 17.40 72 18 48 125
O3FD1750SA 17.50 72 18 48 125
O3FD1760SA 17.60 72 18 48 125
O3FD1770SA 17.70 72 18 48 125
O3FD1780SA 17.80 72 18 48 125
O3FD1790SA 17.90 72 18 48 125
O3FD1800SA 18.00 72 18 48 125
O3FD1810SA 18.10 76 20 50 131
O3FD1820SA 18.20 76 20 50 131
O3FD1830SA 18.30 76 20 50 131
O3FD1840SA 18.40 76 20 50 131
O3FD1850SA 18.50 76 20 50 131
O3FD1860SA 18.60 76 20 50 131
O3FD1870SA 18.70 76 20 50 131
O3FD1880SA 18.80 76 20 50 131
O3FD1890SA 18.90 76 20 50 131
O3FD1900SA 19.00 76 20 50 131
O3FD1910SA 19.10 80 20 50 135
O3FD1920SA 19.20 80 20 50 135
O3FD1930SA 19.30 80 20 50 135
O3FD1940SA 19.40 80 20 50 135
O3FD1950SA 19.50 80 20 50 135
O3FD1960SA 19.60 80 20 50 135
O3FD1970SA 19.70 80 20 50 135
O3FD1980SA 19.80 80 20 50 135
O3FD1990SA 19.90 80 20 50 135
O3FD2000SA 20.00 80 20 50 135
